Filter Fish Pond Culture Filter Shandong Filter Micro-Filtration Rotating Screen Grille Machine

Product Attributes:

Processing customization:yes
Type of air flotation equipment:Dissolved air float
Net water volume:10 (m³/h)
Influent turbidity:500 (mg/l)
Effluent turbidity:52 (mg/l)
Working pressure:0.5 (Mpa)
Overall dimensions:5000 (mm)
Equipment weight:2 (t)

Product Introduction:
Microfilter is a simple mechanical filtration equipment using microhole filtration. It is suitable for separating the tiny suspended substances present in the liquid, generally phytoplankton, zooplankton and organic residue to the maximum extent, to achieve the purpose of liquid purification or recovery of useful suspended matter. The fundamental difference between the micro-filter and other filtration machines is that the filter medium used - stainless steel mesh or micro-filter the total aperture is particularly small, and very thin, this filter is relatively low hydraulic resistance, has a high flow rate characteristics, so that the size of the suspended matter is always smaller than the micro-holes on these filters.
Microfilter is a new type of the most economical water treatment equipment, it can be used for raw water filtration in waterworks (such as algae removal), power plants, chemical plants, textile printing and dyeing plants, paper mills and other industrial water filtration, and circulating cooling water filtration, wastewater purification and sewage treatment. A typical example of the useful suspended matter in the liquid recovered by the micro-filter is the pulp (fiber) recovery of the white liquid of paper making, which has a high recovery rate, and the white liquid can be recycled after recycling and purification, and also meets the national emission standards.

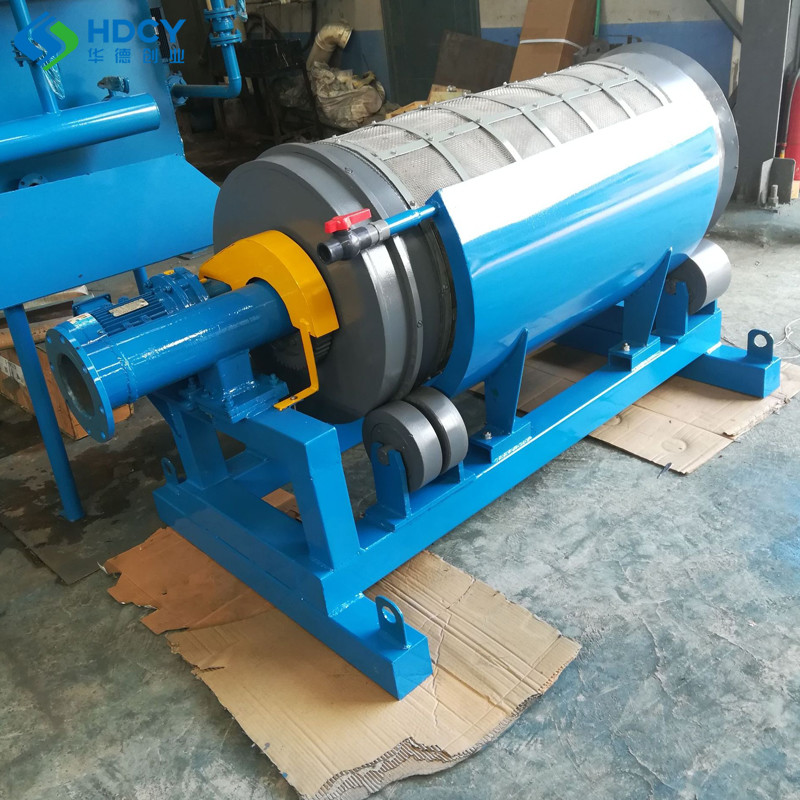

The microfilter is a purification device that uses 80~200 mesh/square inch microporous screen fixed on the rotary drum filter equipment, and realizes solid-liquid separation by intercepting solid particles in the aquaculture water body. And at the same time of filtration, the microporous screen can be cleaned in time by the rotation of the drum and the force of the recoil water. Keep equipment in good working condition at all times. Our company's micro-filter is aimed at the existing micro-filter easy to clog, easy to damage, easy to corrosion, difficult to maintain and other problems, is one of the best use technologies for Marine water recycling aquaculture water treatment. The product can purify the water and achieve the purpose of recycling by separating the solid waste in the aquaculture water.
The treated wastewater enters the drum of the micro-filter axially, flows out through the screen in a radial radial manner, and the impurities in the water (fine suspended matter, fiber, pulp, etc.) are intercepted in the inner surface of the filter screen on the drum of the micro-filter. When the impurities trapped on the filter screen are brought to the microfilter by the drum, they are recoiled by the pressure washing water and discharged into the slag discharge tank. When running, the 2/5 diameter of the drum of the micro-filter is exposed to the water surface, the revolution is 1-4r/min, the filter speed of the micro-filter can be 30-120m/h, the washing water pressure is 0.5-1.5kg/cm2, the washing water volume is 0.5-1.0% of the water production, and the algae removal efficiency is 40-70% when it is used for reservoir water treatment. Plankton removal efficiency is 97-100%. Micro-filter covers a small area, large production capacity (250-36000m3/d), easy operation and management, has been successfully used in water supply and wastewater treatment.
Micro-filter is also called automatic drum micro-filter, is a new type of filtration equipment, with ultra-low energy consumption, automatic control can be used by more and more people. Combining the disadvantages of the old model with the actual use of the site, Guangzhou AVIC has improved the structure of many details to make the micro-filter work more ideal.
The role of the micro-filter is mainly to filter particles, other filtration accuracy can be customized with filtration requirements, filtration accuracy has three kinds, respectively, 20 microns, 40 microns, 80 microns, other accuracy can also be customized according to the requirements of users, can be widely used in all walks of life, but also used in a variety of water treatment projects, which is the most used in aquaculture.




Beijing Huade Creation Environmental Protection Equipment Co., Ltd. (referred to as "HDCY") was established in 2003 and is a comprehensive service provider of environmental protection equipment and technology in China. With a secondary qualification for design and construction installation in the environmental protection industry, we have leading production equipment and processing workshops domestically. Our products and services have been applied in numerous fields such as power, mining, coal, chemical, and steel industries.

HDCY water treatment products cover all material separation fields for separating coarse particles with particle sizes ranging from 0.1nm to 10mm and above. It is currently the most comprehensive technology company for the treatment of tailings water, mine water, coal containing wastewater,and desulfurization wastewater in the mining and power industries.

Our high-efficiency, low-cost industrial wastewater treatment equipment (systems) have achieved successful applications in hundreds of projects

both domestically and internationally. Products such as cyclones, nozzles, and demisters provide services to over a thousand domestic customers.

The ultrafine particle classification cyclone and anti clogging special filter help customers achieve their demand of "spending small money, doing

big things". High speed microfiltration filters are widely favored by customers due to their unique design concept, which perfectly solves the

problems of traditional filters such as small processing capacity, easy blockage, and low filtration accuracy. We focuses on providing professional solutions for domestic and foreign customers, helping enterprises achieve safety production and environmental standards and let our environmental technology make money for customers.
